2026 Utility Trailer 3000R
Get in Touch
Description
2026 Utility Trailer 3000R
The 3000R remains the #1 selling refrigerated trailer in North America because Utility's philosophy of continuous improvement ensures optimized thermal efficiency and maximized performance.
Features may include:
- Foam mandrel with foam-in-place insulation
- 20K aluminum duct floor system
- Hendrickson® ULTRAA-K™ 40K air ride suspension & slider system
- Bendix® TABS-8 advanced with trailer roll stability
- Stainless steel rear door frame
- Integrated heavy-duty 10" high wearband
- D.O.T. rated I.C.C. bumper
- 5½" deep extruded aluminum crossmembers
- Support leg bracing
- Corrosion protection
- Impact-absorbing rear gusset
- ConMet Preset Plus® premium wheel end system
- Unique tensioned roof design
- Heavy-duty kingpin section
- 100% LED lighting
- 100% soldered main harness
- Stainless steel covered extruded aluminum corner posts
- Diagonal reinforcing gussets on slider rails
- Lining corner closures
- Thermal barriers
- Ultra Road Shield™ Plus (URS+)
- USS-120A-4 Aerodynamic Side Skirt
Dealer Notes

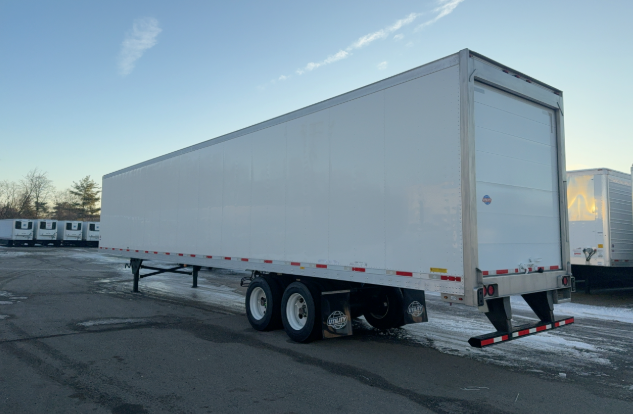

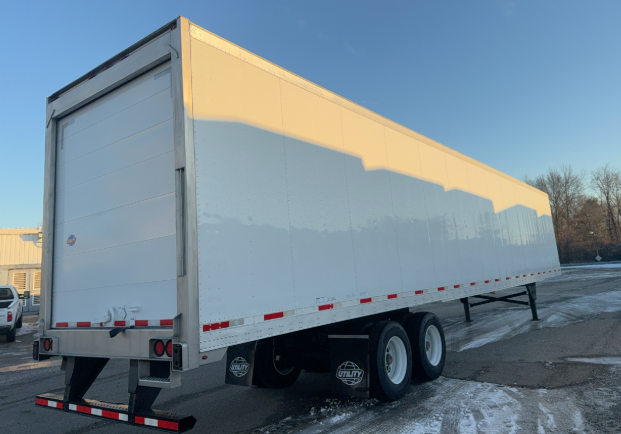

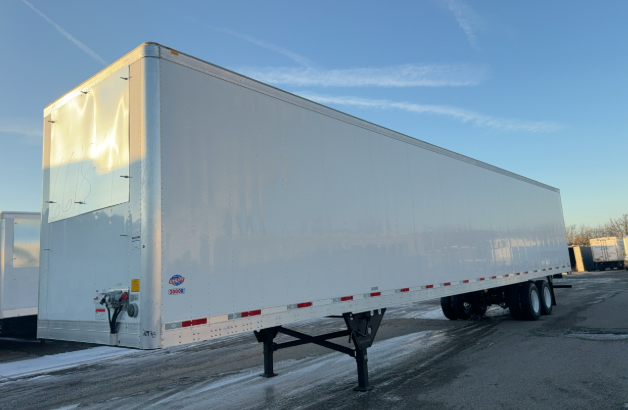

NEW 2026 UTILITY 3000R "HIGH CUBE" REEFERS, 53 X 102 X 13'6" AIR RIDE, ALUM WHEELS, TIRE INFLATION, SIDE SKIRTS, ROLL DOORS, FLAT FLOOR, 16" WEAR BAND, (1) ROW LOGISTICS E-TRACK, 107-1/2" DOOR OPENING, 109" INSIDE HEIGHT AT FRONT. AVAILABLE AND READY FOR THERMO KING OR CARRIER REEFER UNIT (ALSO IN STOCK).
Info
Industry
Trailer
Make
Utility Trailer
Model
3000R
Trim
Base
Year
2026
Category
Reefer Trailer
Subcategory
Reefer Trailer
Condition
New
Axles
2
Width
102"
Height
13'6
Suspension
AIR RIDE
Rear Door
ROLL
Floor
FLAT ALUMINUM
Specifications
GVWR
65,000 lbs
Max Load
Payload: 55,000 lbs
Height
Overall: 13 ft 6 in on 46 1/2 in height 5th wheel | Inside: 104 1/8 in
Width
Overall: 102 3/8 in | Inside: 97 1/2 in at wearband
Length
Overall: 53 ft 0 in
Notes
Deck Type: Straight | Roof bows: 1 in extruded aluminum J-shaped bows on 48 in center lines
Frame
Front Subframe: 4 1/4 in deep box beam design
Top Rail
Bottom rails: 11 in deep heavy-duty extruded aluminum; tapered front and rear
Crossmembers
Front: 4" aluminum I-beam crossmembers with 4 rivet end clips on 12" center line | Rear: 5 1/2 in aluminum I-beam crossmembers with 4 rivet end clips on 12 in center line
Suspension
Slider suspension: 70 in rear and 166 in forward for 96 in of slider travel
Walls
Front wall posts: 1 in J-shaped extruded aluminum post with 2 additional 3 1/4 ft deep steel reefer unit support posts
Gate/Door
Rear door hinge material: Non-polished aluminum | Rear door hinges: 4 per door | Rear door lock rods: 1 per door | Rear door panels: .040" aluminum exterior panel
Floor
Type: 1 1/2 in extruded aluminum high wear 20K duct floor system and integral 10" heavy-duty extruded aluminum non-tapered wearband
Electrical
Electrical receptacle: 7-way without circuit breakers | Main harness: Utility moisture-resistant 6-wire harness with internal ground and 7-way plug
Lights
Clearance lights quantity: 0-1-2-5 D.O.T. minimum clearance light package | Rear header clearance lights: Grote® Micronova® LED grommet-mounted | Upper clearance lights: Factory choice LED with 3 in mounting hole at center line | Lower clearance lights: Grote® Micronova® LED PC-rated | Side mounted directional light: Grote® Supernova® LED combo on bracket below bottom rail (each side) | ABS warning light: Grote® Micronova® LED PC-rated | Stop, tail, turn lights: Grote® 4" LED (10-diode) lights, 2 per side with black snap-in flange
Finish
Front panel finish: Pre-painted white with Ultra Road Shield™ Plus (URS+) | Side panel finish: Pre-painted white with Ultra Road Shield™ Plus (URS+)
Wheels
22.5 in × 8.25 in standard width wheels Factory choice steel 10 hub piloted wheels
Tires
295/75R 22.5 in Michelin X®-Line Energy-T2 14ply Load Range 'G'
