2026 Utility Trailer 3000R Multi-Temp
Get in Touch
Description

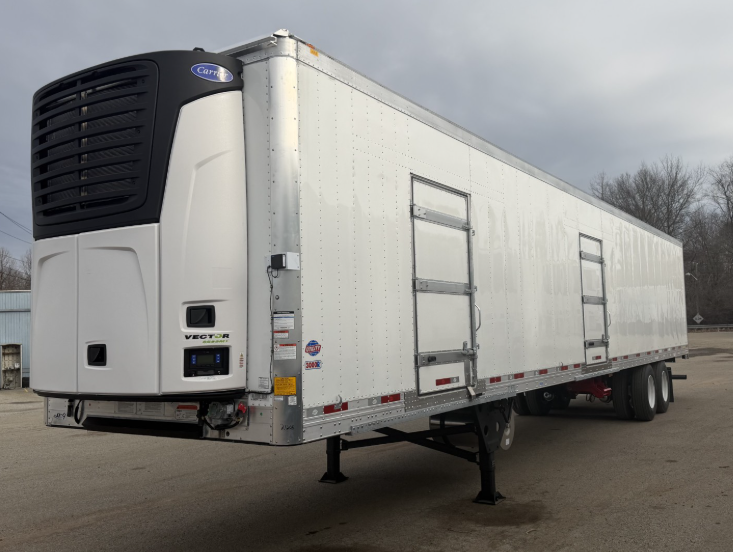

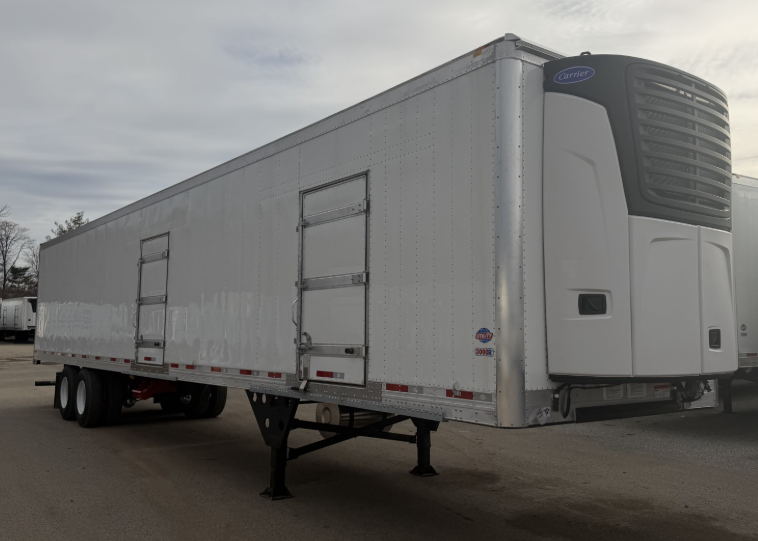

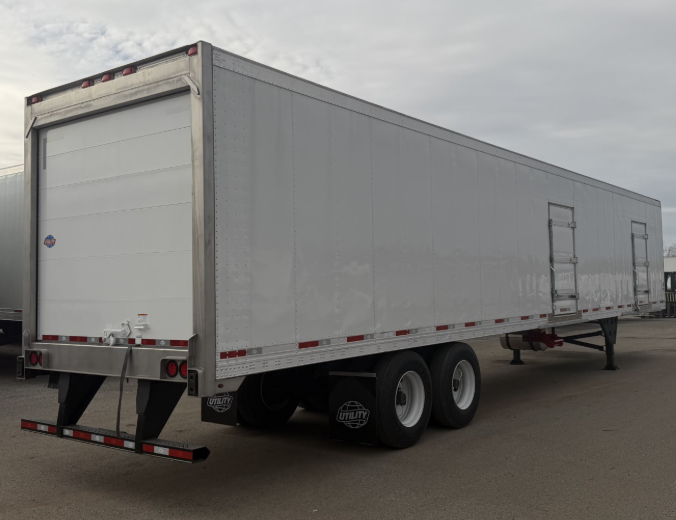

2026 Utility Trailer 3000R Multi-Temp
Built with the same industry-leading technologies of the 3000R, the Utility 3000R Multi-Temp reefer is customizable with a variety of options to meet your unique operational requirements.
Features may include:
- Foam mandrel with foam-in-place insulation
- .065" UCC R2 lining
- Integrated heavy-duty 10" high wearband
- 100% LED lighting
- Support leg bracing
- Corrosion protection
- Impact-absorbing rear gusset
- ConMet Preset Plus® premium wheel end system
- Unique tensioned roof design
- 5⁄16" thick dock board guide plates
- Thermal barriers
- Ultra Road Shield™ Plus (URS+)
- 100% soldered main harness
Dealer Notes
NEW Food Distribution Side Door Reefer, 48' x 102" x 12'6" Multi Temp Roll door, A single width remote evap located at 216" centerline, just ahead of the A doors - frozen, cool, dry compartments, (4) side doors - two at front (D) and two (A) doors at 248" leading edge, Steps at doors, No gate or prep but gates can be added postproduction
Info
Industry
Trailer
Make
Utility Trailer
Model
3000R Multi-Temp
Trim
Base
Year
2026
Category
REEFER
Subcategory
Reefer Trailer
Condition
New
Axles
2
Length
48"
Width
102"
Height
12'6"
Suspension
AIR RIDE
Tires
LP22.5
Rear Door
ROLL
Floor
FLAT
Roof
ALUMINUM
Specifications
GVWR
65,000 lbs
Max Load
Payload: 55,000 lbs
Height
Overall: 13 ft 6 in on 46 1/2 in height 5th wheel | Inside: 104 1/8 in
Width
Overall: 102 3/8 in | Inside: 97 1/2 in at wearband
Length
Overall: 53 ft 0 in
Notes
Deck Type: Straight | Roof bows: 1 in extruded aluminum J-shaped bows on 48 in center lines
Frame
Front subframe: 4 1/4 in deep box beam design
Top Rail
Bottom: 11 in deep heavy-duty extruded aluminum; tapered front and rear
Crossmembers
Front: Crossmembers front subframe to legs 4 in aluminum I-beam crossmembers with 4 rivet end clips on 12 in center line | Rear: Crossmembers legs to rear subframe 5 1/2 in aluminum I-beam crossmembers with 4 rivet end clips on 12 in center line
Suspension
Slider suspension: 70 in rear and 166 in forward for 96 in of slider travel
Walls
Front wall posts: 1 in J-shaped extruded aluminum post with 2 additional 3 1/4 ft deep steel reefer unit support posts
Gate/Door

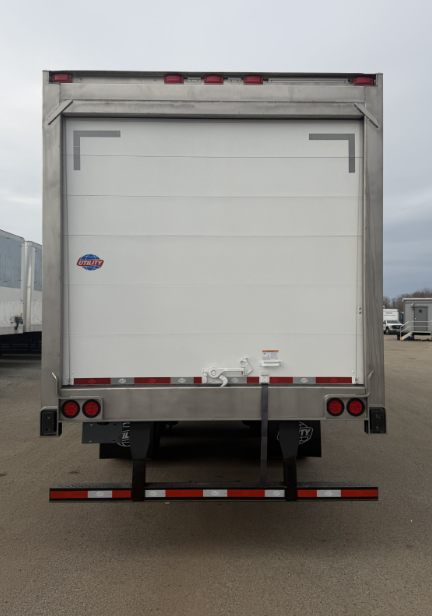

Rear door hinge material: Non-polished aluminum | Rear door hinges: 4 per door | Rear door lock rods: 1 per door | Rear door panels: .040 in aluminum exterior panel
Floor

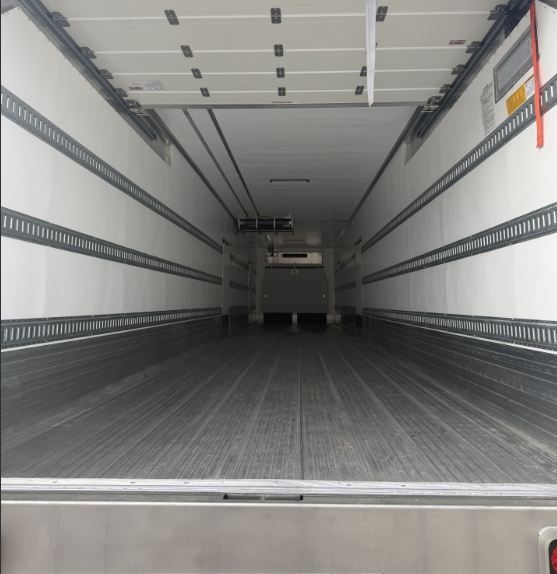

Type: 1 1/2 in extruded aluminum high wear 20K duct floor system and integral 10" heavy-duty extruded aluminum non-tapered wearband
Electrical
Electrical receptacle: 7-way without circuit breakers | Main harness: Utility moisture-resistant 6-wire harness with internal ground and 7-way plug
Lights
Clearance lights quantity: 0-1-2-5 D.O.T. minimum clearance light package | Rear header clearance lights: Grote® Micronova® LED grommet-mounted | Upper clearance lights: Factory choice LED with 3 in mounting hole at center line | Lower clearance lights: Grote® Micronova® LED PC-rated | Side mounted directional light: Grote® Supernova® LED combo on bracket below bottom rail (each side) | ABS warning light: Grote® Micronova® LED PC-rated | Stop, tail, turn lights: Grote® 4 in LED (10-diode) lights, 2 per side with black snap-in flange
Finish
Front panel finish: Pre-painted white with Ultra Road Shield™ Plus (URS+)
Wheels
22.5 in × 8.25 in standard width wheels Factory choice steel 10 hub piloted wheels
Tires
295/75R 22.5 in Michelin X®-Line Energy-T2 14ply Load Range 'G'
